Aluminum Lunch Box Production Line

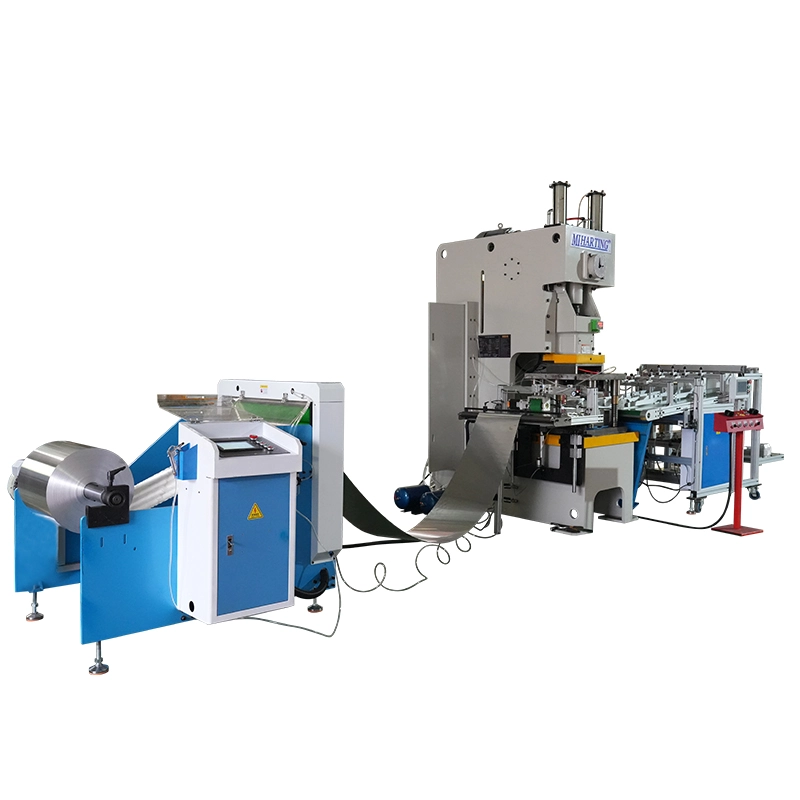

  • punching machine products line
  • punching machine products line
Aluminum Lunch Box Production Line
Suitable for a variety of molds
Aluminum Lunch Box Production Line
High efficiency
Aluminum Lunch Box Production Line
Environmental friendly

Introduction to Configuration

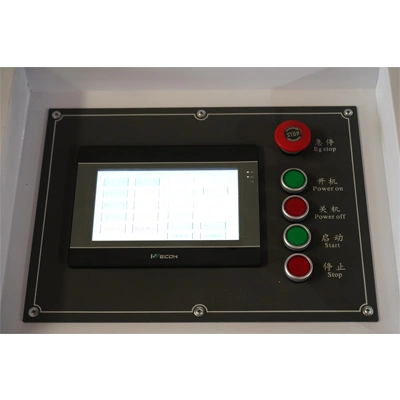

  • Control-system
    Control-system

    Usebrand accessories,such as Siemen sinverters, PLC and touch screens.

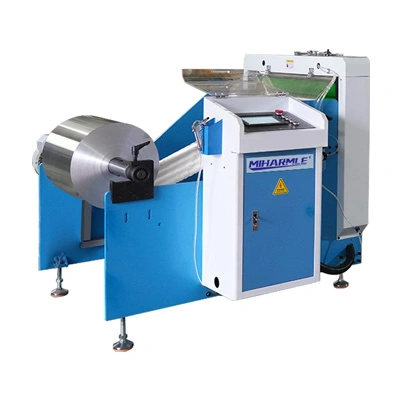

  • Feeding Machine
    Feeding Machine

    Feeding machine,Automatic feeding can be controlled.

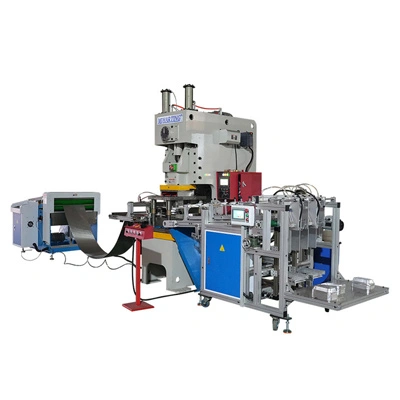

  • Power Press Machine
    Power Press Machine

    Molds with multiple cavities(1 to multiple cavities) and various shapes (square, round, ovaland special shapes) can be customizedto provide personalized final printing services and use scientific design to reduce the cutting waste rate and save costs.

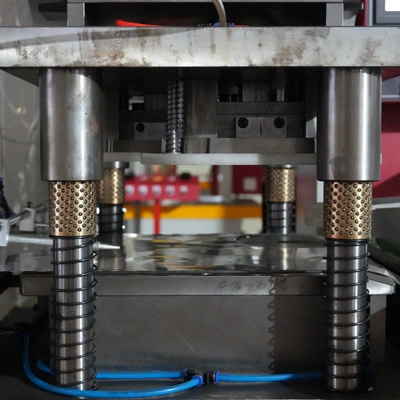

  • Punch Molds
    Punch Molds

    We provide multi-tonnage punch presses, including 45T, 63T, 80T, 130T and 200T, you can choose your different production needs to ensure that you go to the right place.

  • Stacking Machine
    Stacking Machine

    Automatic stacking machine, 1-4 rows (optional)

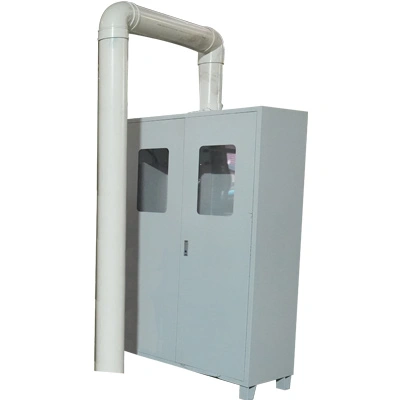

  • Replacement Collector
    Replacement Collector

    The main function of the replacement collector is to collect excess aluminum foil, collect the replacement together, and then compact the aluminum replacement into bundles.

Specification of Aluminum Lunch Box Production Line

MODELJ23-16J²3-25J23-40J23-63J23-80J23-100J23-125J23-200J23-250
Nominal force(KN)1602504006308001000125020002500
Slider stroke(mm)50708080100100140145145
Number of slide strokes(次/min)1106550505040383838
Max mold height(mm)170200220250270300370420410
Mold height adjustment amount(mm)        30         30         45          50          60          80          100         100         100303045506080100100100
Distance from Mekong center to fuselage160200220250260310395400400
Workbench size(mm)320*460350*520390*630420*650470*750570*860740*1150780*1250780*1300
Die handle hole size (mm)(diameter*D)φ40*60φ40*60φ50*70φ50*70φ60*80φ60*80φ60*85φ60*85φ60*85
Workbench thickness(mm)455070708080110120130
Slider bottom size(mm)120*180170*220210*250240*280260*300360*400360*430410*500410*500
Motor Power(kw)1.5345.55.57.5111515
Overall Dimensions L*W*H(mm)1130*830*18901120*860*22001600*1100*22501740*1100*25201765*1295*26501940*1490*28502350*1780*36002540*2010*38002740*2280*3850
