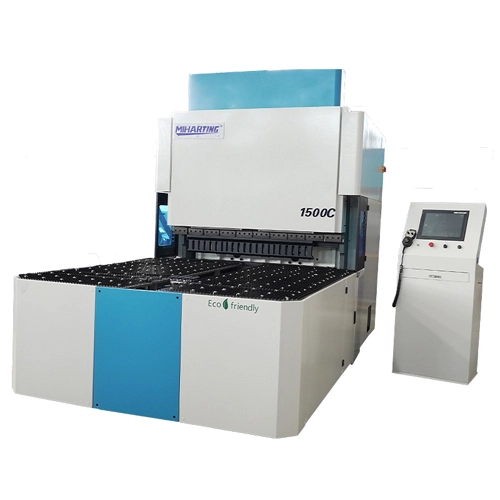

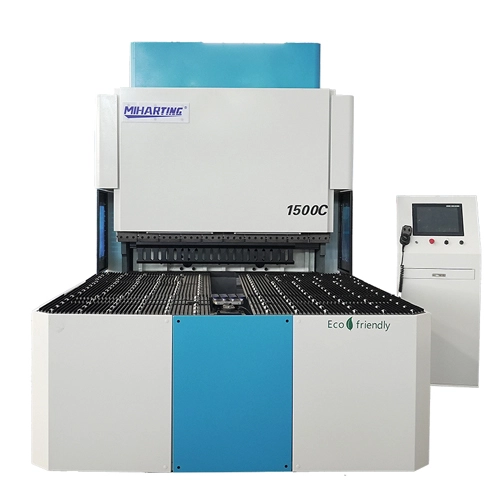

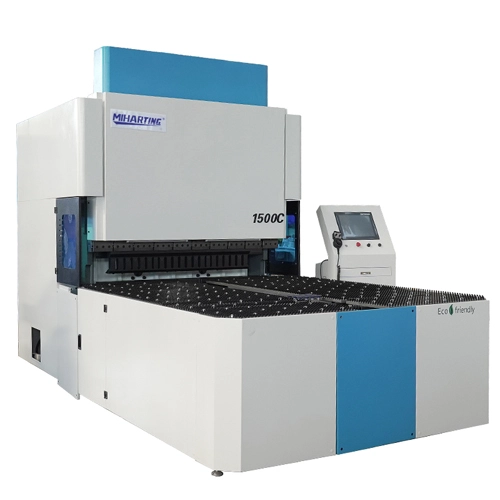

Flexible bending center machines occupy an important position in the modern sheet metal processing industry with their advanced technology and efficient performance.
Name: SUPPLIER NAME
CNC system: MADIC CORPORATION
Servo drive: YASKAWA/SANYO

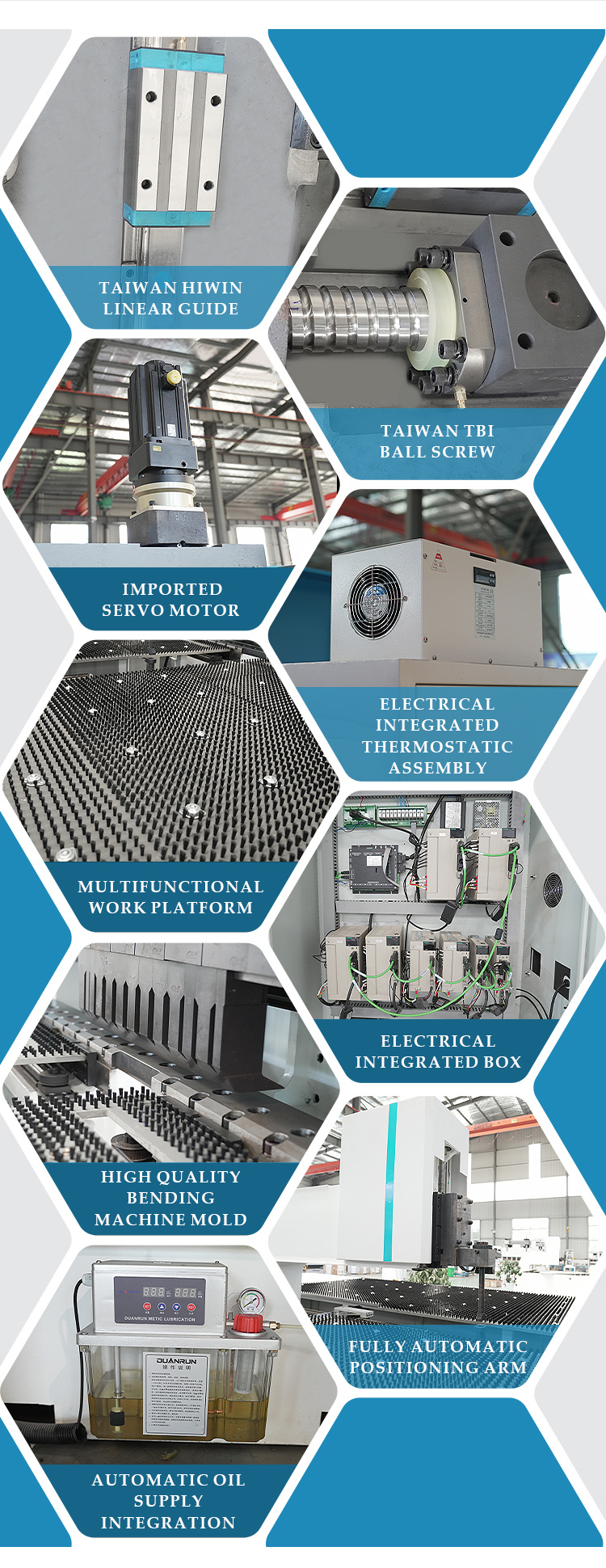

Linearguide: TAIWAN HIWIN
Motion ball screw: TAIWAN TBI
Bearing: JAPANESE NSK
Gearreducer: TAIWAN APEX
Core Features
Multi-axis concurrent linkage
Nine-axis (11-axis) concurrent linkage: realizes the perfect matching of all axes of the equipment, ensuring the smoothness of bending action and high coordination of mechanical operation.
Offset protection and detection system
Offset inspection system and follow-up system: can effectively protect the machine and workpiece, reduce the waste of workpiece, and extend the service life of the equipment.
Thick plate detection system: effectively detect thicker plates to ensure stability and safety during processing.
Main Configuration Advantages
1.High precision and high efficiency
High degree of automation: The flexible bending center can realize automatic bending of the four sides of the plate, greatly improving production efficiency and consistency.
CNC system design: The new generation of CNC system is adopted to achieve perfect matching of all axes of the equipment in parallel, and programming is faster and easier.
Full servo control: Through full servo control, the product accuracy is controlled within 3 seconds, and the bending speed reaches 0.5s/time, which significantly improves the processing efficiency.
2.Environmental protection and energy saving
Pure electric servo system: replaces the traditional hydraulic drive, with the advantages of environmental protection, fast speed, high precision, maintenance-free, etc.
Energy saving and environmental protection: The whole machine adopts a full-electric full-closed-loop servo CNC system, replacing the traditional hydraulic drive, which is in line with the green development direction of modern industry.
Flexibility and adaptability
Multi-functional bending capability: It can realize one-time forming of various complex shapes such as right angles, non-right angles, arcs, etc., and is suitable for metal forming fields of different industries and workpieces
3.Safety and ease of use
Automatic operation: No need to manually hold the workpiece, the bending process is fully automated, greatly reducing the safety hazards caused by workers' misoperation.
Friendly human-machine interface: With a graphical interface, workers only need to input bending data, and the system automatically generates bending instructions, which is simple and easy to understand.
Technical parameter | Unit | Flexible bending center model | |
Feeding mode | / | Suction cup type | Press type panel bender |
Bending Length | mm | 1400 | 2000 |
Max bending height | mm | 170 | 170 |
Max bending height | mm | 4 | 4 |
Max forning size of four sides | mm | 400*250 | 300*300 |
Max forming size of one side | mm | 160 | 160 |
Max arc radus | mm | 1.2 | 1.2 |
Max continuous bending speed | s | 0.2 | 0.25 |
Bending angle | º | 0-180 | 0-180 |
Number of control axes | / | 9 | 10 |
Axis postioning accuracy | mm | 0.01mm | 0.01mm |
Max feeding speed | m/min | 60 | 120 |
Average power | kw | 1.5 | 2 |
Total power | kw | 45 | 55 |
Bending die | mm | Standard configuration | Standard configuration |
Equipment size | mm | 3700*3000*2750 | 5790*3100*2300 |
Equipment weight | T |
Main product configuration | |
Name | Brand |
Control syster | Independent R&D |
servo motor | INVT |
servo drive | INVT |
linear guide rail | Rextroth, Germany |
Electrical components | HIWIN,Taiwan |
Pneumatic components | Schneider, France |
mponent | AirTAC, Taiwan |
Bearing | NSK |
Reducer | Wanxin, Taiwan |
