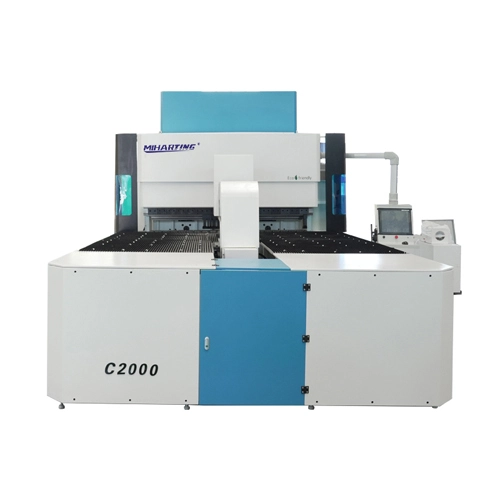

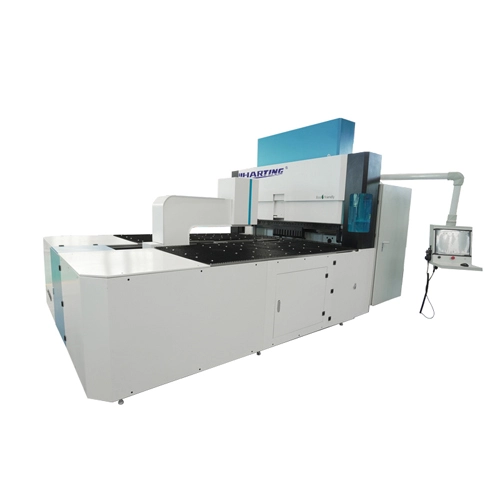

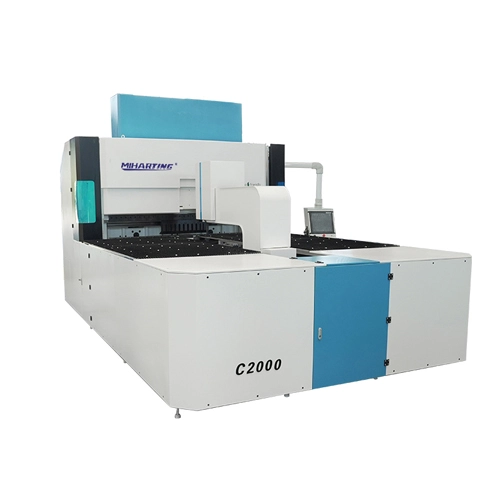

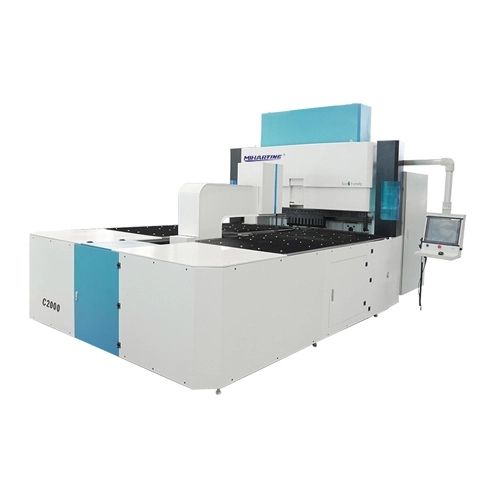

Technical parameter | Unit | Flexible bending center model | |
Feeding mode | / | Suction cup type | Press type panel bender |
Bending Length | mm | 1400 | 2000 |
Max bending height | mm | 170 | 170 |
Max bending height | mm | 4 | 4 |
Max forning size of four sides | mm | 400*250 | 300*300 |
Max forming size of one side | mm | 160 | 160 |
Max arc radus | mm | 1.2 | 1.2 |
Max continuous bending speed | s | 0.2 | 0.25 |
Bending angle | º | 0-180 | 0-180 |
Number of control axes | / | 9 | 10 |
Axis postioning accuracy | mm | 0.01mm | 0.01mm |
Max feeding speed | m/min | 60 | 120 |
Average power | kw | 1.5 | 2 |
Total power | kw | 45 | 55 |
Bending die | mm | Standard configuration | Standard configuration |
Equipment size | mm | 3700*3000*2750 | 5790*3100*2300 |
Equipment weight | T |
Main product configuration | |
Name | Brand |
Control syster | Independent R&D |
servo motor | INVT |
servo drive | INVT |
linear guide rail | Rextroth, Germany |
Electrical components | HIWIN,Taiwan |
Pneumatic components | Schneider, France |
mponent | AirTAC, Taiwan |
Bearing | NSK |
Reducer | Wanxin, Taiwan |
