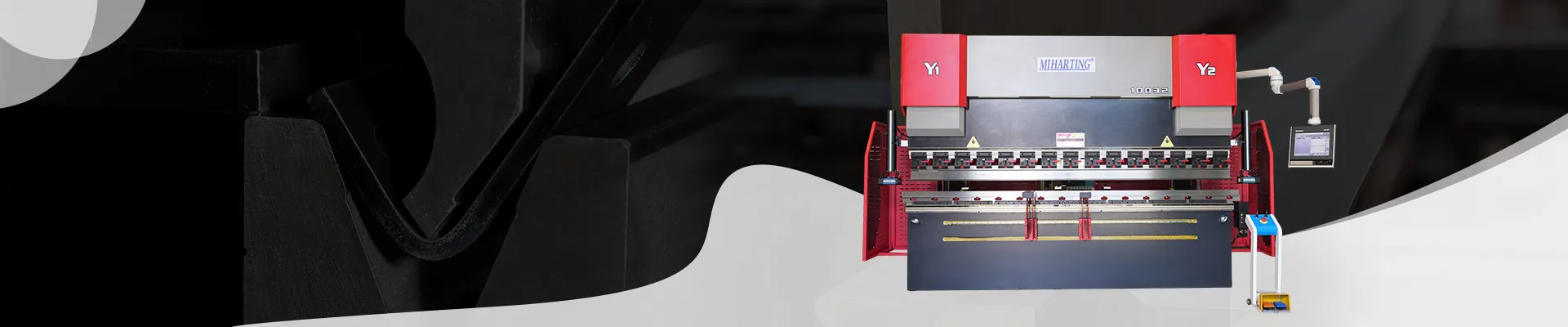

Precision DA66T Electric Hydraulic Press Brake

The back gauge system uses the servo motor and driver of the Dutch DELEM brand to provide stable and accurate power output. Ball screw and linear guide: equipped with Taiwan HIWIN brand ball screw and linear guide to ensure the smooth operation and high-precision positioning of the back gauge system. X-axis travel: 800mm, speed 100mm/s, improve work efficiency and meet bending requirements.

Advantages

1. Multi-axis control capability through X-axis, Z-axis, and R-axis enables it to meet complex production needs

2. High-precision position control and repeated positioning

3. High-efficiency bending, shortened production cycle

4. The machine maintains stability and safety during operation

The front support system of the electro-hydraulic bending machine is mainly composed of the following parts:

• Servo motor: As the power source, it transmits power through the pulley to drive the lead screw, driving the entire slide to move up and down.

• Lead screw and flap: A long keyway is provided on the lead screw, and a pin is installed at the top dead point of the keyway to convert the rotation of the lead screw into the up and down movement of the flap, thereby tightly bending the sheet material.

• Manual operating mechanism: used to move the front support mechanism left and right to adapt to sheets of different widths.

Electro-hydraulic bending machine quick clamps are mainly used to quickly clamp the upper and lower dies of the bending machine to ensure stability and safety during the bending process. They are suitable for many types of bending machines, including ordinary bending machines and CNC bending machines, and can adapt to different work needs.

Advantages of the motor

• Reliability: It can maintain good performance after long-term operation.

• High efficiency: It reduces energy consumption while ensuring performance.

• Excellent performance: It can adapt to various harsh working environments.

The hydraulic system of the dual servo electro-hydraulic bending machine includes key components such as hydraulic cylinders, transition blocks, filling valves, electromagnetic reversing valves and proportional pressure valves. These components work together to not only effectively protect the hydraulic cylinders and reduce the operating load, but also improve the stability and practicality of the hydraulic system.

Improved protection performance

Through carefully designed protection components, the hydraulic system of the dual servo electro-hydraulic bending machine can reduce the risk of damage to the hydraulic cylinder by external forces to a certain extent and extend the service life of the hydraulic system. This design takes into account various external factors that the hydraulic system may encounter during use, ensuring the long-term stable operation of the equipment.

Main functions of laser protection devices

• Protect the safety of operators: detect people or objects in the danger zone and issue an alarm in time.

• Improve production efficiency: help operators complete work faster and reduce downtime and delays caused by safety issues.

• Improve equipment reliability: detect abnormal conditions of equipment and issue an alarm in time to help operators deal with problems in time and avoid equipment damage and accidents.

• Comply with safety standards: comply with relevant safety standards and regulations, help enterprises improve safety management level and reduce the incidence of safety accidents.

The material of bending machine mold is generally T8, T10, T10A, and the better one is 42CrMo. In addition, Cr12MoV is also a good material. It requires high strength, high toughness and good wear resistance, and cold working die steel is often used. 42CrMo is a high-strength alloy quenched and tempered steel with high strength and good toughness. It can work below 500 degrees.
