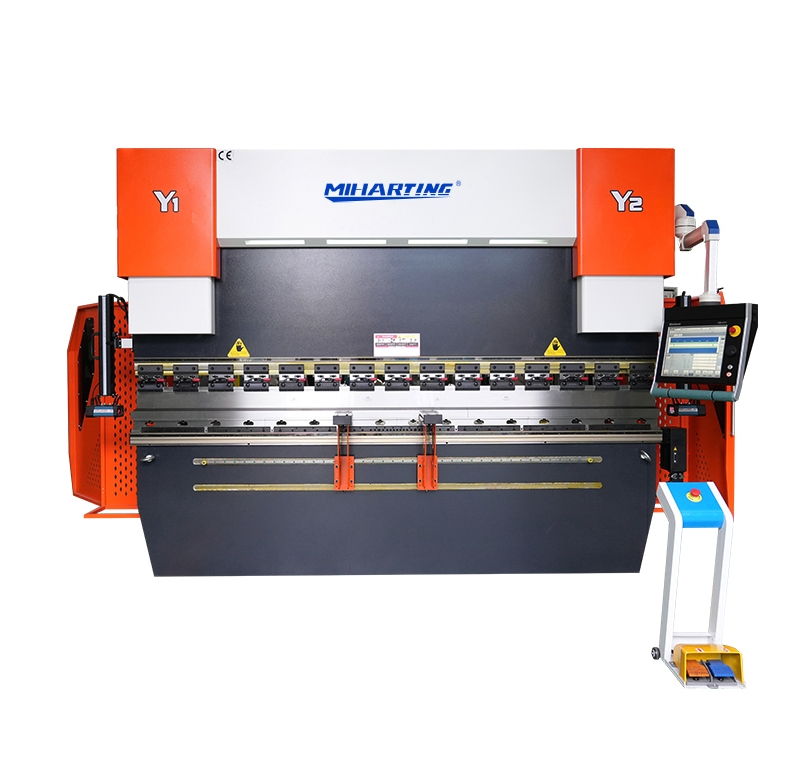

Precision DA69T Electric Hydraulic Press Brake

DA69T performs better in multi-axis collaborative control and motion planning, and can give full play to the advantages of multi-axis bending machines to achieve more complex bending movements.

  • da69t press brake machine
  • da69t press brake machine
Precision DA69T Electric Hydraulic Press Brake
High precision back gauge
Precision DA69T Electric Hydraulic Press Brake
Optional systems
Precision DA69T Electric Hydraulic Press Brake
Operational safety

Features of Precision DA69T Electric Hydraulic Press Brake

  • 2D and 3D touch graphics programming.

  • 30 product graphics simulation display.

  • 17° high resolution TFT true color display.

  • Complete WINDOWS application package.

  • Compatible with DELEM modular structure system.

  • USB, peripheral interface.

  • User program application in multi-tasking environment.

  • Angle detection sensor interface. PROFILE-T3D offline programming software.

Introduction to Configuration

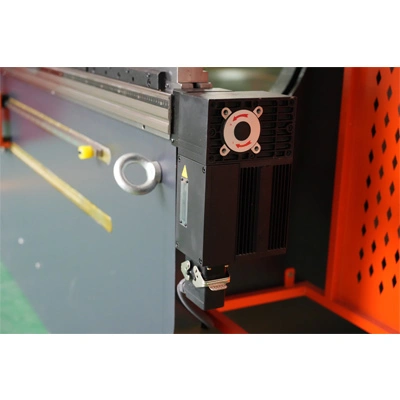

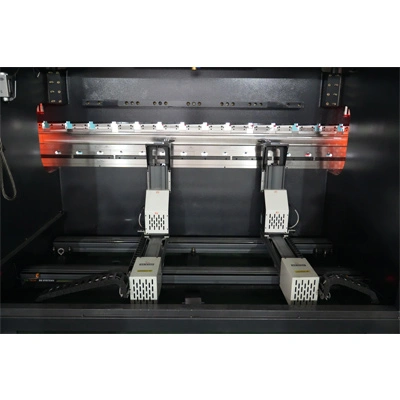

  • Backgauge 6-8axis
    Backgauge 6-8axis

    8+1 axis bending machines, such as the WE67K series, equipped with the DA69T system, are able to handle a wide range of metal bending applications, from simple to complex shapes. This type of bending machine is particularly suitable for the manufacture of deep boxes and other complex shapes, providing high precision, high efficiency and versatility.

    Application examples of the DA69T system in 8+1 axis bending machines.

    • WE67K-100T/3200: This bending machine is equipped with the DA69T system, which can be easily programmed and operated, and is suitable for bending a variety of metal sheets.

    • WE67K-160T3200: Also equipped with the DA69T system, this bending machine has a maximum bending force of 160 tons and a maximum bending length of 3200 mm, which is very suitable for processing large metal sheets.

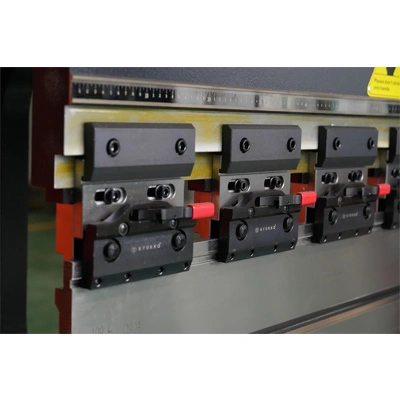

  • Clamping
    Clamping

    The quick clamp of electric bending machine is an important accessory for bending machine.

    Its main function is to quickly and accurately fix the plate during the bending process to improve processing efficiency and processing accuracy.

    The design of the quick clamp enables the operator to quickly complete the positioning and clamping of the workpiece, thereby reducing production preparation time and improving overall production efficiency.

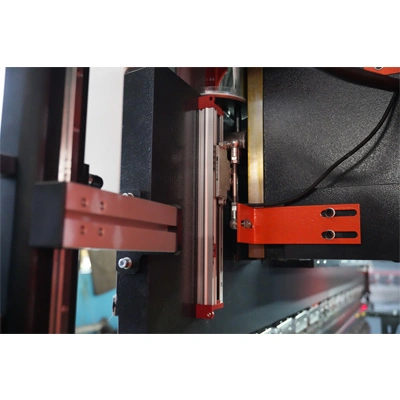

  • Grating Ruler
    Grating Ruler

    The grating ruler of the electro-hydraulic bending machine is made by using the principle of interference and diffraction of light, and can be used to detect linear displacement or angular displacement.

    During the operation of the electro-hydraulic bending machine, it can accurately detect the displacement of components such as the slider, providing basic data for the precise control of the bending machine.

    Thereby ensuring the synchronous control accuracy, bending accuracy and repeated positioning accuracy of the bending machine.

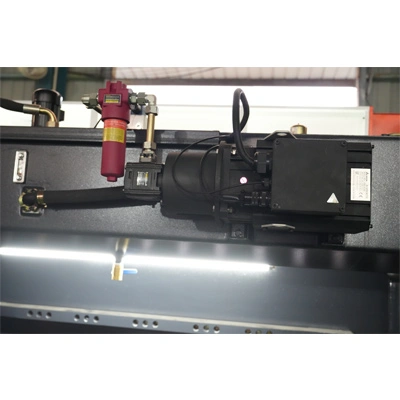

  • Hydraulic System
    Hydraulic System

    The hydraulic system of the electro-hydraulic bending machine is mainly composed of the following parts:

    Power element

    • Hydraulic pump: responsible for converting mechanical energy into liquid pressure energy.

    • Hydraulic cylinder: actuator, converting the pressure energy of the liquid into mechanical force to drive the movement of the bending head2.

    Control element

    • Hydraulic valve: used to control the flow direction and pressure of the hydraulic oil, thereby realizing various actions and controls of the bending machine2.

    Auxiliary element

    • Hydraulic oil: as a working medium, transmitting pressure and lubrication.

  • Mechanical Crowning
    Mechanical Crowning

    The compensation amount is automatically calculated and set by the NC system to ensure the consistency of the full-length bending angle.

    Advantages

    • Parametric intelligent adjustment

    • Multi-station compatibility

    • Reduce wear on key components

    • Impact-resistant structure optimization

    • Adapt to complex processing needs

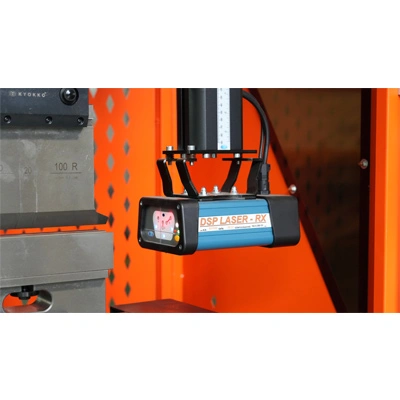

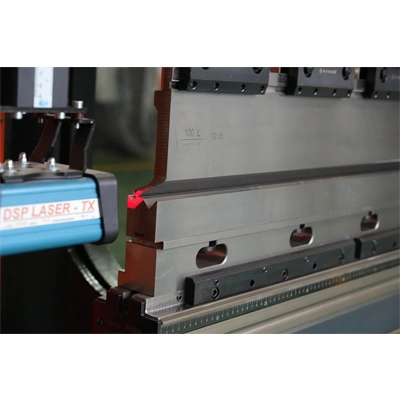

  • Laser Protection(Optional)
    Laser Protection(Optional)

    Main functions of laser protection devices

    • Protect the safety of operators: detect people or objects in the danger zone and issue an alarm in time.

    • Improve production efficiency: help operators complete work faster and reduce downtime and delays caused by safety issues.

    • Improve equipment reliability: detect abnormal conditions of equipment and issue an alarm in time to help operators deal with problems in time and avoid equipment damage and accidents.

    • Comply with safety standards: comply with relevant safety standards and regulations, help enterprises improve safety management level and reduce the incidence of safety accidents.

  • Light Curtain Protection(Optional)

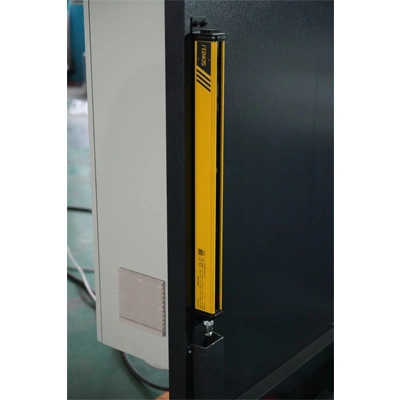

    Light Curtain Protection(Optional)

    The light curtain protection system of the electro-hydraulic bending machine is mainly composed of a light emitter, a receiver, a mounting bracket and a controller.

    This system can effectively prevent the fingers and arms of the workers from being crushed when the bending machine is working, and effectively protect the workers.

    The light curtain protection system is not only suitable for various forms of workpieces such as flat plate bending, folding box, Z-type bending, etc., but also can concentrate all functions on the operation panel, making it easy for users to switch between various modes.

  • Front Support Material

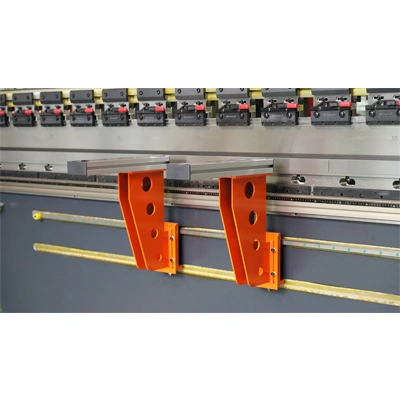

    Front Support Material

    The workbench and the bracket are in contact through two supporting points, the slider and the bearing, which can better bear the force. The support device drives the workpiece to rotate around the bending center line, and the movement direction of the supporting point is vertical.

    Function

    Assisted bending process

    1. The flap of the front support device can always be close to the bent sheet material, allowing the sheet material to complete a complete bending process and ensure the smooth progress of the bending operation.

    Improved stability

    2. Some existing support devices have the problem of few force points and poor stability. The improved structure, such as the contact between the slider and the bearing at two fulcrums, can better bear the force, improve the stability of the support device, and thus ensure its performance.

    Support sheet material

    3. For long and thin sheets, the front support frame (device) can support the sheet material to prevent the sheet material from affecting the bending effect due to its own gravity and other factors.

    Convenient operation and production

  • Press Brake Toolings
    Press Brake Toolings

    The material of bending machine mold is generally T8, T10, T10A, and the better one is 42CrMo.

    In addition, Cr12MoV is also a good material. It requires high strength, high toughness and good wear resistance, and cold working die steel is often used.

    42CrMo is a high-strength alloy quenched and tempered steel with high strength and good toughness. It can work below 500 degrees.

Specification of Precision DA69T Electric Hydraulic Press Brake

ModelNominal Pressure(KN)worktable Length(mm)Throat Depth(mm)Ram Strokes(mm)Max.Opening Height(mm)Main Motor Power(kw)Overall Dimensions L*W*H(mm)
WC67Y/K-30/160030016002008019031700*900*1650
WC67Y/K-30/200030020002008019031700*900*1650
WC67Y/K-40/250040025002801003205.52600*1100*1900
WC67Y/K-63/250063025003001003805.52605*1725*2355
WC67Y/K-63/320063032002501003805.53300*1725*2355
WC67Y/K-80/250080025002501403957.52605*1725*2355
WC67Y/K-80/320080032003201403957.53300*1725*2405
WC67Y/K-100/2500100025003201403957.52600*1800*2540
WC67Y/K-100/3200100032003201403957.53290*1740*2400
WC67Y/K-100/4000100040003201403957.54090*1740*2500
WC67Y/K-100/5000100050003201403957.55100*1740*2800
WC67Y/K-125/3200125032003201403957.53450*1740*2800
WC67Y/K-125/4000125040003201403957.54090*1740*2450
WC67Y/K-160/320016003200330200457113280*1930*2800
WC67Y/K-160/400016004000330200457114080*1930*2800
WC67Y/K-160/450016004500330200457114580*1930*2800
WC67Y/K-200/400020004000330200457114080*1930*2800
WC67Y/K-250/500025005000400200560205550*1900*3100
WC67Y/K-300/320030003200400250630193750*2200*3100
WC67Y/K-300/400030004000400250630234550*2200*3300
WC67Y/K-300/500030005000400250630265550*2200*3400
WC67Y/K-300/600030006000400250630306550*2600*3500
WC67Y/K-400/400040004000400300770264550*2600*3500
WC67Y/K-400/500040005000400300770305550*2600*3700
WC67Y/K-400/600040006000400300770366550*2600*3800
WC67Y/K-500/400050004000450350860374550*2800*3800
WC67Y/K-500/500050005000450350860465550*2800*3800
WC67Y/K-500/600050006000450350860556500*2800*3800
WC67Y/K-600/600060006000450350860606550*3000*4200
