Precision E21 Hydraulic Swing Shearing Machine

The swing shearing machine drives the knife frame through the hydraulic system to complete the shearing action, and adopts PLC or CNC system to realize automatic operations such as back gauge positioning and blade gap adjustment. Some chassis are equipped with spare motor drive to improve accuracy.

  • swing-shearing-machine-prices
  • swing-shearing-machine-prices
Precision E21 Hydraulic Swing Shearing Machine
Reliable performance
Precision E21 Hydraulic Swing Shearing Machine
Easy to operate
Precision E21 Hydraulic Swing Shearing Machine
Low noise, high precision

Introduction to Configuration

  • Hydraulic Swing Shearing Machine
    Hydraulic Swing Shearing Machine

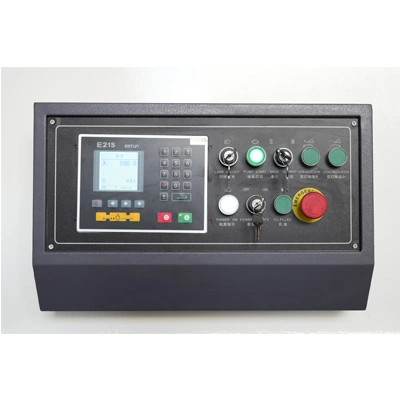

    • Backgauge control

    • Control the common motor or inverter

    • Holding pressure unloading time setting

    • Workpiece counting

    • 40 programs stored,25 steps perprogram

    • Concession function

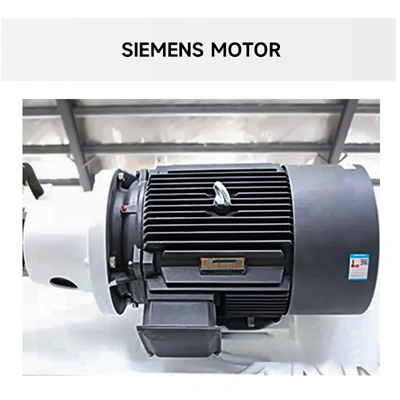

  • Siemens Motors
    Siemens Motors

    Famous brand motor from germany.

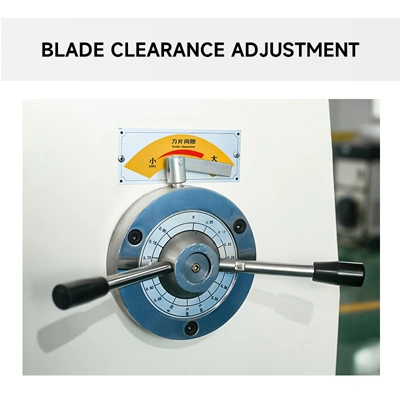

  • Clearance Adjustment
    Clearance Adjustment

    According to the cutting thickness of the metal plate, the gap of the cutting blade is adjusted by the motor to obtain better cutting performance.

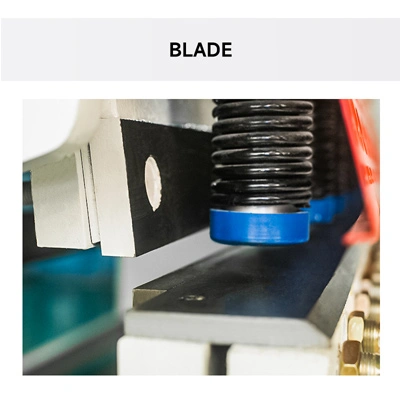

  • Shearing Blade
    Shearing Blade

    Upper insert with 4 cutting edges, lower insert with 4 cutting edges.

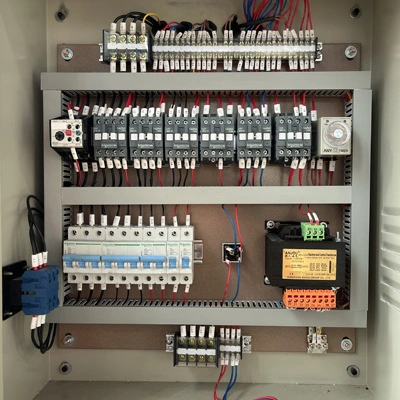

  • Electric Cabinet
    Electric Cabinet

    High-quality electrical components work well even when power is unstable, and can be easily replaced by users anywhere in the world.

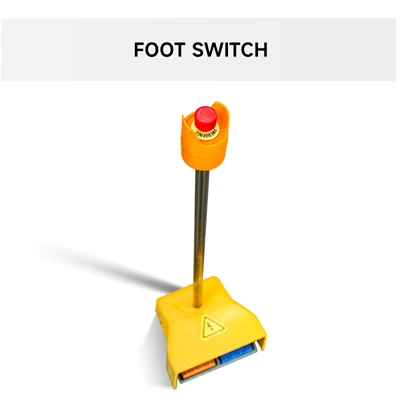

  • Foot Switch
    Foot Switch

    Enhancing the service life and operational sensitivity and never broken up.

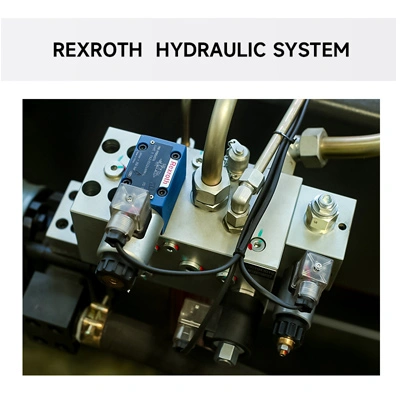

  • Rexroth Hydraulic Valve
    Rexroth Hydraulic Valve

    Rexroth is a sub-brand of bosch and a professional supplier of hydraulic valves.

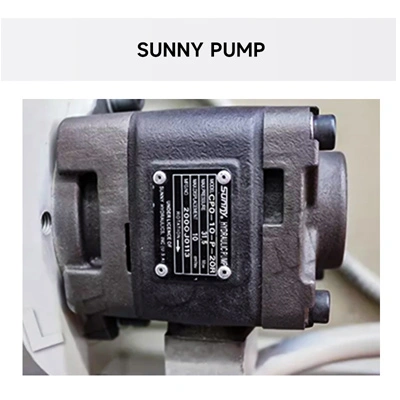

  • Pump
    Pump

    Well-known american brand oil pumps provide powerful power for the entire hydraulic system.

Specification of Precision E21 Hydraulic Swing Shearing Machine

ModelCutting ThicknessCutting LengthCutting AngleMaterial StrengthStroke TimesMain Motor Power(kw)Overall Dimensions
TYPE(mm)(mm)(º)(KN/CM)(min/time)(kw)L*W*H(mm)
QC12Y/K 4*2500425001º30′≤450165.53040*1550*1550
QC12Y/K 4*3200432001º30′≤450135.53480*1550*1550
QC12Y/K 4*4000440001º30′≤450105.54600*1700*1700
QC12Y/K 4*6000460001º30′≤45057.56460*2100*3200
QC12Y/K 6*2500625001º30′≤450157.53040*1710*1620
QC12Y/K 6*3200632001º30′≤450127.53840*1710*1620
QC12Y/K 6*4000640001º30′≤45097.54620*1850*1700
QC12Y/K 6*5000650001º30′≤45087.55410*1710*1620
QC12Y/K 6*6000660001º30′≤4505116480*2100*2300
QC12Y/K 8*2500825001º30′≤450117.53040*1700*1700
QC12Y/K 8*6000860001º30′≤4508116480*2100*2350
QC12Y/K 10*25001025001º30′≤45010113040*1800*1700
QC12Y/K 10*60001060001º30′≤45010156500*2100*2300
QC12Y/K 12*2500122500≤4501218.53140*2050*2000
QC12Y/K 12*6000126000≤450518.56900*2600*2700
QC12Y/K 16*25001625002º30′≤4501018.53140*2150*2000
QC12Y/K 16*60001660002º30′≤4505226900*2700*2700
QC12Y/K 20*2500202500≤4508223400*2300*2500
QC12Y/K 20*6000206000≤4504226700*3000*3000
QC12Y/K 25*2500252500≤4508373200*2700*2900
QC12Y/K 25*3000253000≤4505374200*2400*2500
QC12Y/K 30*3500303500≤4504373300*2900*3000
QC12Y/K 30*40003040003º30′≤4504404200*2500*2600
QC12Y/K 40*4500404500≤4503753200*3300*3200
QC12Y/K 40*5000405000≤4503904300*3300*3000
