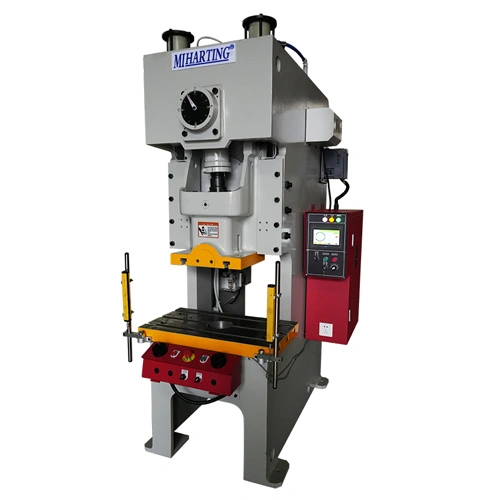

Precision JF21 Pneumatic Punching Machine

The JH21 pneumatic punch press adopts an open C-type body with a simple structure and low failure rate. It is equipped with complete safety protection devices, such as hydraulic overload protection and photoelectric protection, to ensure the safety of operators. Products can also be customized according to user requirements.

  • precision jf21 pneumatic punching machine
  • precision jf21 pneumatic punching machine
Precision JF21 Pneumatic Punching Machine
1
Precision JF21 Pneumatic Punching Machine
2
Precision JF21 Pneumatic Punching Machine
3

Introduction to Configuration

  • Structure
    Structure
    • Steel plate welding structure, open C-shaped design, thermal aging treatment to eliminate internal stress, ensuring the good rigidity and stability of the machine tool.

    • Main components.

    • Gears and gear shafts: After hardening heat treatment and then fine grinding, they have high wear resistance and balance, effectively reducing friction noise.

    • Slider rail: The slider adopts a hexahedral rectangular rail, the rail material is alloy copper, which is not only highly wear-resistant, but also stable and high precision.

  • Safety Features
    Safety Features
    • Emergency stop button: Equipped with an emergency stop button, it can quickly stop the operation in an emergency to ensure safe operation.

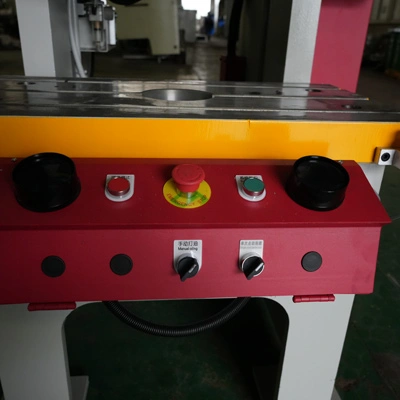

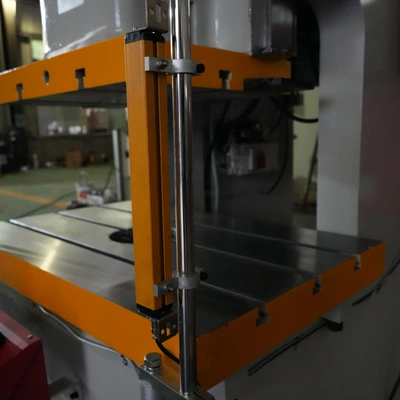

    • Two-handed operation: It adopts two-handed operation and is equipped with a safety light curtain to effectively prevent safety accidents caused by misoperation.

    • Shock-absorbing pad: The bottom foot is equipped with a shock-absorbing pad, which has a high-strength shock-absorbing effect and reduces vibration during operation.

  • Advantages and Features
    Advantages and Features
    • High rigidity and stability: The body structure is carefully designed to ensure good stability and precision while bearing large punching force.

    • Efficient and energy-saving: It adopts pneumatic drive, which has higher energy efficiency and lower maintenance cost than traditional hydraulic drive.

    • Easy to operate and maintain: The overall design takes into account the convenience of operation and the simplicity of maintenance, and is equipped with an intuitive operation panel and regular maintenance reminder function.

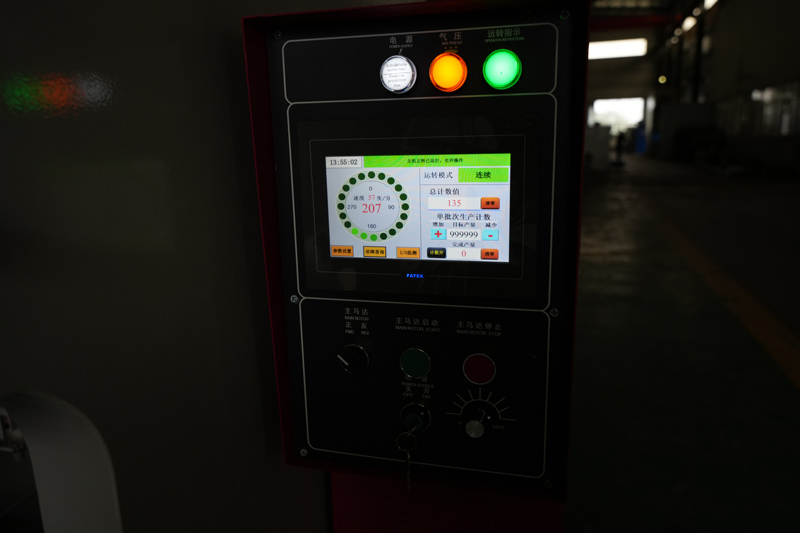

PLC Control System Configuration of Precision JF21 Pneumatic Punching Machine

PLC Control System Configuration of Precision JF21 Pneumatic Punching Machine

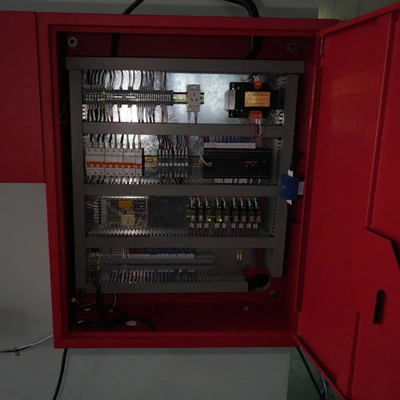

  • Hardware composition: mainly composed of PLC controller, pneumatic actuator, sensor, frequency converter, etc. The input module includes sensors, buttons, switches, etc., which are used to obtain operator operation information and monitor working status; the output module includes solenoid valves, cylinder drivers, etc., which are used to control the start and stop and speed of the cylinder; the power module provides the power support required by the system.

  • Software programming: PLC program includes initialization settings (such as variable definition, interrupt setting, etc.), main program design (writing control logic according to the production process to achieve coordinated work of each station) and error handling.

Applicable Processes of JF21 Precision JF21 Pneumatic Punching Machine

  • Suitable for various cold stamping processes such as blanking, punching, forming, bending, shallow drawing, etc.

Specification of Precision JF21 Pneumatic Punching Machine



63T25100T32100T40125T32125T40160T32160T40200T32200T40...
CapacityKN63010001000125012501600160020002000
Table Lengthmm250032004000320040003200400032004000...
Between Columnsmm210026003100260031002600310026003100...
Daylight Openingmm420460460460460460460460460...
Ram Strokemm150200200200200200200200200...
Throat Depthmm320400400400400400400400400...
Approach Speedmm/s180180180180180160160150150...
Working Speedmm/s12101010109999...
Return Speedmm/s170160160160150150140140130...
Main Motor Powerkw5.57.57.57.57.511111515...
X axes strokemm500500500500500500500500500...
X axes speedmm/s300300300300300300300300300...
R axes strokemm200200200200200200200200200...
R axes speedmm/s606060606060606060...


Customer Testimonials of Precision JF21 Pneumatic Punching Machine

Get A QUOTE right now

Contact us to solve a series of problems in sheet metal processing for you.
