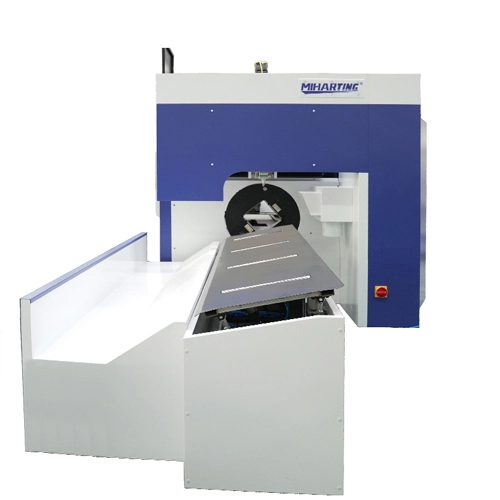

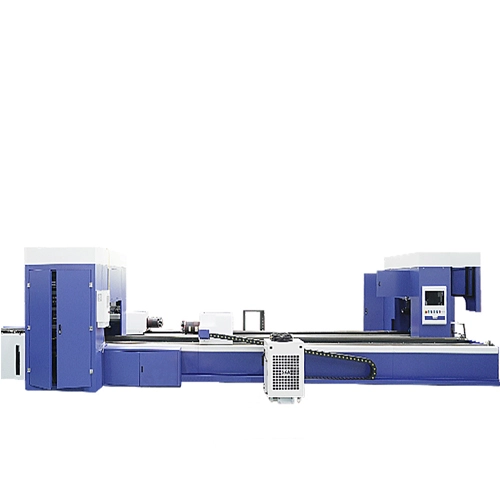

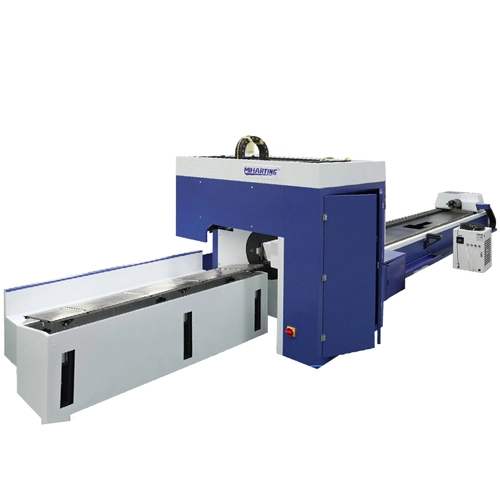

Tube Laser Cutting Machine

  • laser cutting pipe machine
  • laser cutting tube machine
  • laser cutting tube
  • laser cutting pipe company
  • laser cutting pipe machine
  • laser cutting tube machine
  • laser cutting tube
  • laser cutting pipe company
Tube Laser Cutting Machine
Fast cutting speed
Tube Laser Cutting Machine
Refined processing
Tube Laser Cutting Machine
Suitable for cutting different panels

Introduction to Configuration

  • Stretched Aluminum Gantry
    Stretched Aluminum Gantry

    Using low pressure steel film casting process,the beam has high density, light weight,smooth surface quality,excellent integrity and rigidity.At the same time,it has good toughness,ductility and corrosion resistance.

  • Super Thick and Wide Steel Bed
    Super Thick and Wide Steel Bed

    Steel bed has good shock absorption and small deformation, which ensures the stability of long-term production.It can effectively counteract the force of frequent high-speed reversing and high acceleration and deceleration,which is the guarantee of stable quality and provides support for constant quality of laser cutting machine.

  • Laser Cutting System
    Laser Cutting System

    Intelligent visual control system, the operation interface is easier to understand, and the laser power, gas type and pressure can be adjusted intuitively; Intelligent edge searching, automatic positioning, easy to achieve efficient production.

  • Japan Panasonic Servo Motor
    Japan Panasonic Servo Motor

    The high precision servo motor can control the cutting speed and position, running smoothly and without vibration.

  • Laser Cutting Head
    Laser Cutting Head

    The laser head automatically avoids obstacles, suppresses vibrations, and enables multiple perforation patterns.

Details of Tube Laser Cutting Machine


Specification of Tube Laser Cutting Machine

PowerThickest, Max Penetration

1000W1500W2000W
Stainless steel docking5mm,3mm9mm,4.5mm10mm,5mm
Stainless steel cornerjoint5mm,2mm9mm,3.5mm10mm,4mm
Carbon steel butt joint5mm,3mm9mm,4mm10mm,4.5mm
Carbon steel corner joint5mm,2.5mm9mm,3mm10mm,3.5mm
Aluminum alloy docking3mm,1.2mm9mm,1.5mm10mm,2mm
Aluminum alloy corner joint3mm,1mm9mm,8mm10mm,2.3mm


Customer Testimonials of Tube Laser Cutting Machine

Get A QUOTE right now

Contact us to solve a series of problems in sheet metal processing for you.
